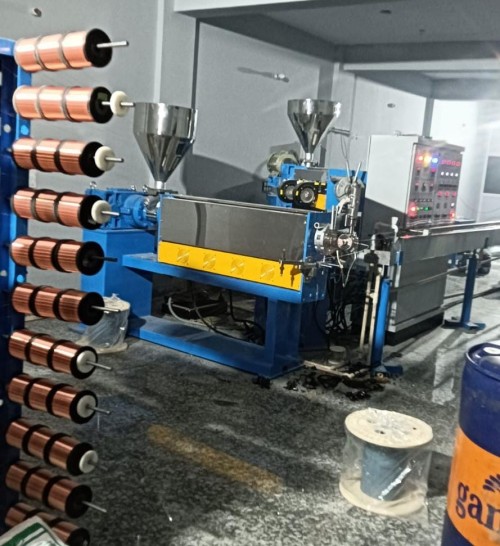

House wire making machine

House wire making machine Specification

Product Type
House Wire Making Machine

Wire Material
Copper, Aluminum

Inlet Diameter
1.5 mm - 6 mm

Outlet Diameter
0.5 mm - 3 mm

Insulation Material
PVC, XLPE

Voltage
380 V / 415 V

Power
15 kW

Dimension (L*W*H)
3500 mm x 1000 mm x 1600 mm

Usage
For the production of electric house wiring cables

Weight
1850 kg

Color
Blue / Custom

Number of Strands
Single / Multi-strand

Application Area
Residential and Commercial Wiring

Safety Features
Emergency stop, Overload protection, Safety covers

Machine Speed
Adjustable speed

Pay-off and Take-up
Motorized

Heating Zones
4 Zones

Control System
PLC Based Automatic Control

Noise Level
< 75 dB(A)

Operator Requirement
Single operator

Extruder Diameter
50 mm

Cable Size Range
0.5 sq.mm to 6 sq.mm

Cooling Method
Water Cooling System

Production Capacity
100 - 120 meters/minute

About House wire making machine

Experience the astounding performance of our House Wire Making Machine, engineered for personalized production with a remarkable capacity of 100-120 meters per minute. Harness gilt-edged results with a fully customizable setup - adjustable speed, PLC-based control, and support for a wide cable size range (0.5 sq.mm to 6 sq.mm). This valiant machine ensures unbeatable price value, featuring advanced water cooling, single or multi-strand wire capability, and thorough safety provisions. Designed for both residential and commercial wiring, it handles copper or aluminum materials with minimal noise and remarkable efficiency. Available in blue or tailor-chosen color schemes.

Astounding Features & Versatile Applications

Our House Wire Making Machine boasts multi-zone heating, motorized pay-off and take-up, as well as a robust extruder with a 50 mm diameter. It easily integrates into both residential and commercial cable production environments. Safety features such as emergency stops, overload protection, and enclosure covers set this machine apart, while single-operator operation simplifies workflow. Convenient customization makes it suitable for diverse requirements, creating premium electrical wiring with PVC or XLPE insulation.

Global Export Market, Premium Stock & Fast Shipping

We proudly supply our House Wire Making Machine to premium export markets across Asia, the Middle East, and Africa. Our stock is always ready for prompt shipment, ensuring minimal wait with reliable delivery timelines. Each unit comes certified for quality assurance and meets strict standards. Our shipped goods arrive securely packaged, reflecting our commitment to first-class international supply and customer satisfaction.

FAQ's of House wire making machine:

Q: How can I personalize the House Wire Making Machine to fit my production needs?

A: This machine is highly customizable, allowing you to adjust cable size range, color, machine speed, and select between single or multi-strand wire configurations. You can also choose insulation materials such as PVC or XLPE based on your application requirements.

Q: What safety features are included in the machine?

A: The machine incorporates gilt-edged safety features including an emergency stop, overload protection, and robust safety covers to ensure safe operation at all times.

Q: Where is this house wire making machine commonly used?

A: It finds ideal application in both residential and commercial wiring production, offering flexibility for various electric cable manufacturing needs.

Q: What is the process for ordering and delivery?

A: Order placement is simple: select your specifications, and our premium stock is prepared for shipment. Goods are securely packed and shipped swiftly, typically within the stipulated delivery timeline to your market location.

Q: What benefits does the machine offer in terms of operator requirements and efficiency?

A: It requires only a single operator and operates with minimal noise (< 75 dB), streamlining production while maintaining astoundingly efficient output rates of up to 120 meters per minute.
